Cryogenic Labels, SnapPEEL™, Writable, Dispenser Box – 0.94″ x 0.5″ + 0.437″ Circle #JTRA-560
+58
- Patent Pending
- Ⓓ Protected Design
Description

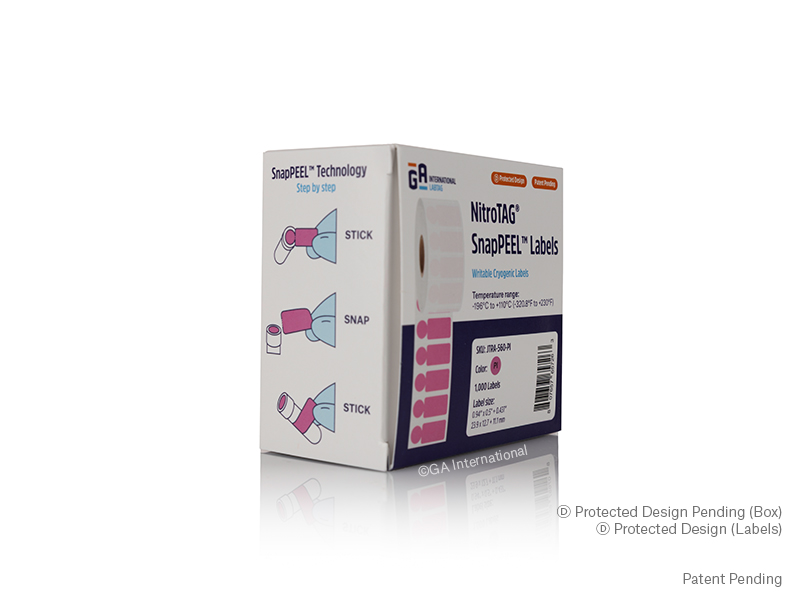

NitroTAG® with SnapPEEL™ Technology – Writable Labels for Liquid Nitrogen Storage (Patent Pending)

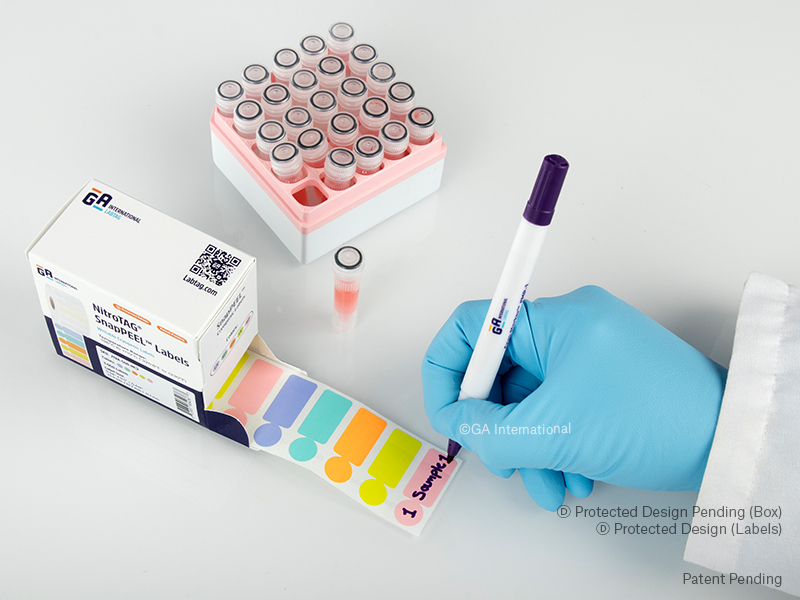

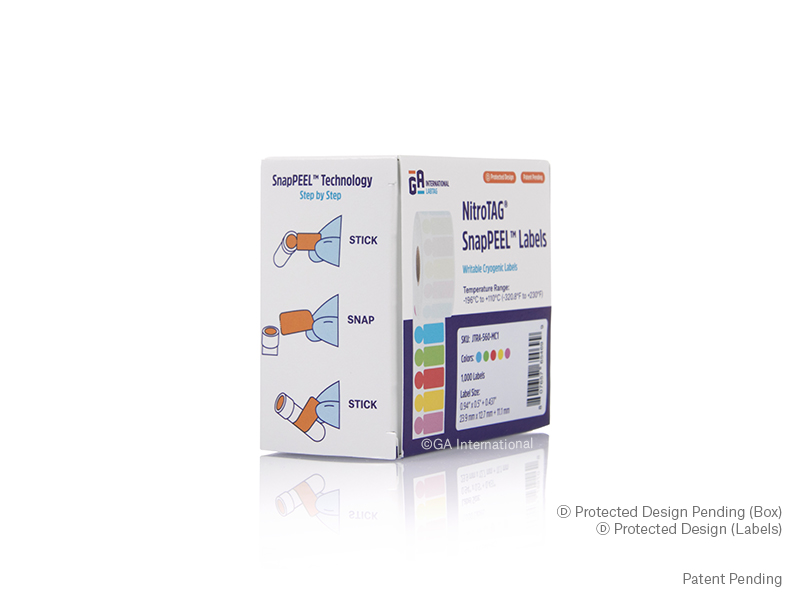

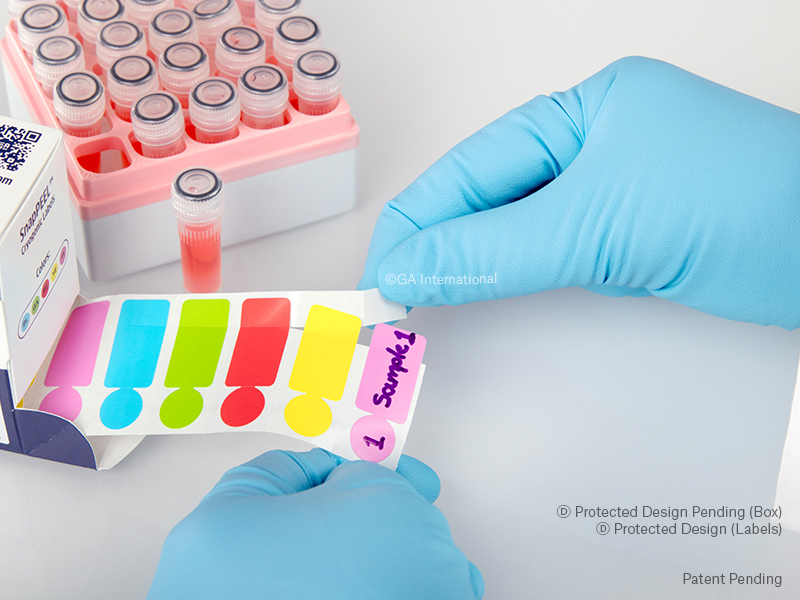

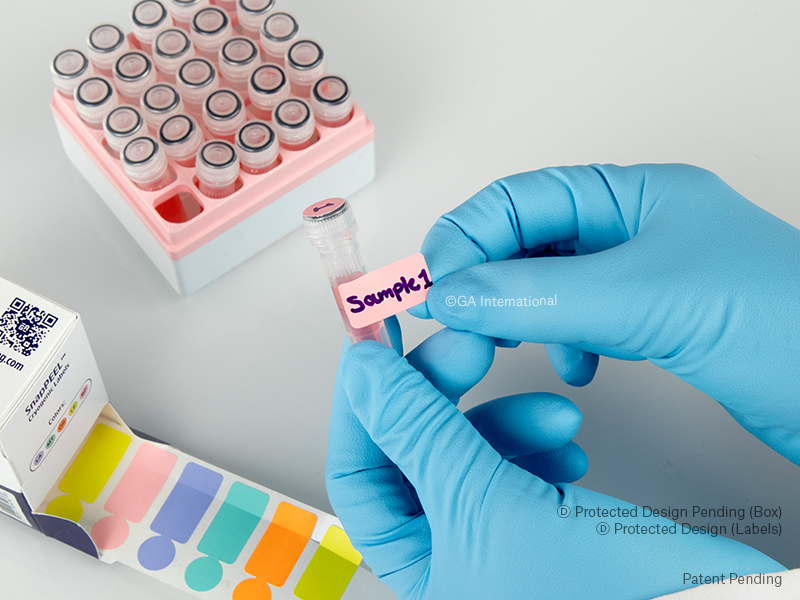

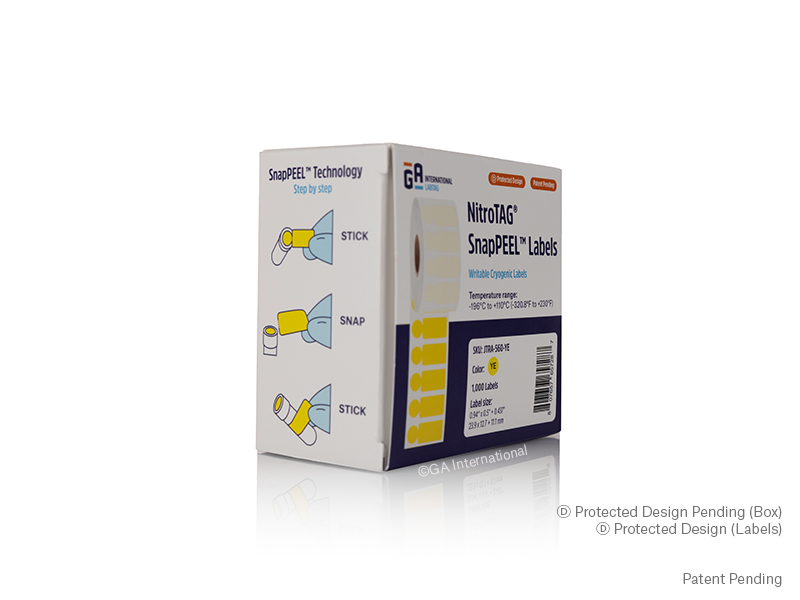

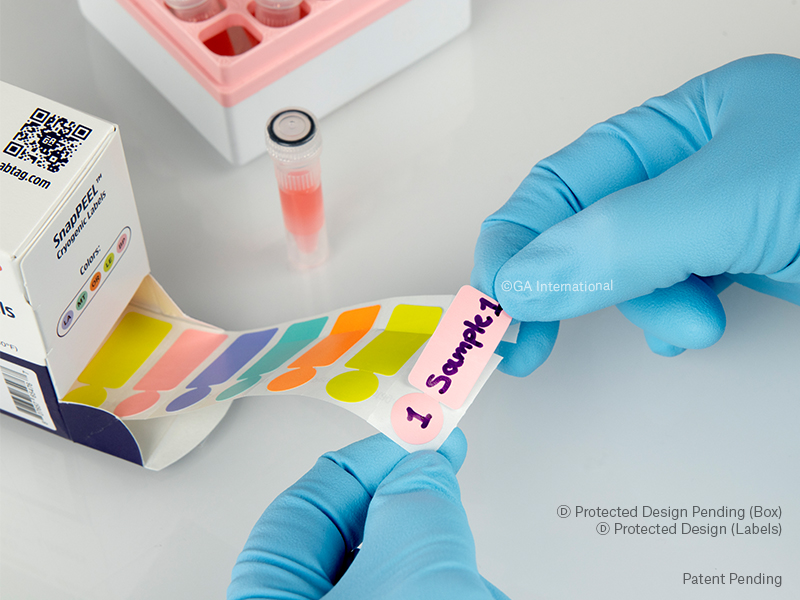

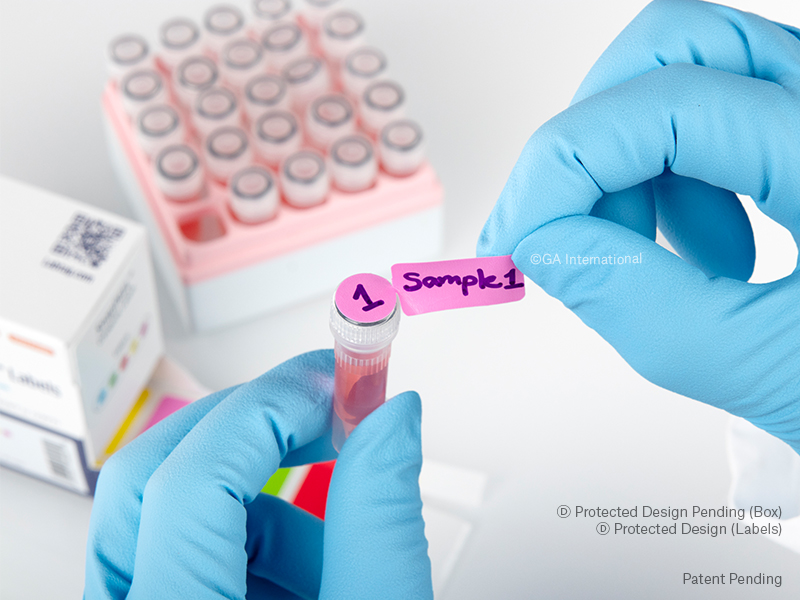

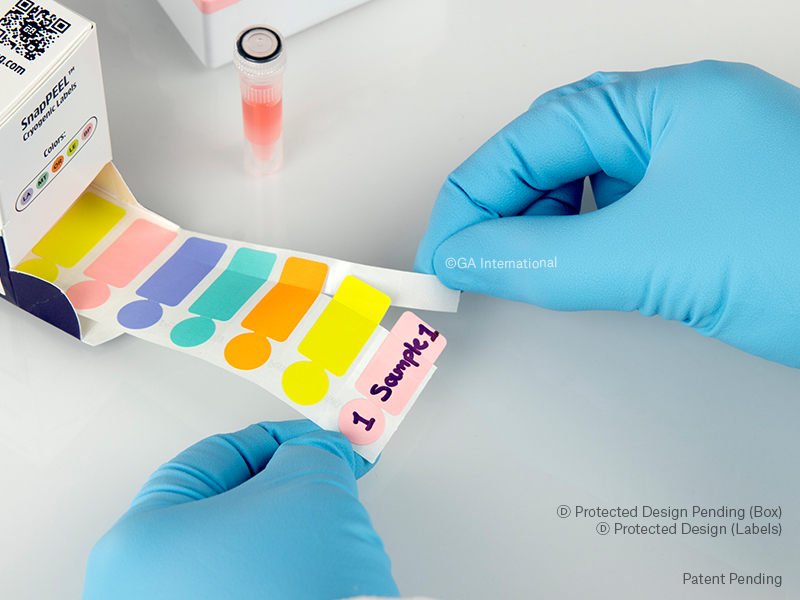

These writable cryogenic labels are specifically designed for durable and efficient identification of cryogenic vials. With SnapPEEL™ technology and a unique connected circle-and-rectangle design, each label allows the cap and side of vials to be labeled seamlessly in one single action. This eliminates the need for separate circle and rectangle labels, significantly improving efficiency and reducing unnecessary contact with the adhesive.
Key Benefits

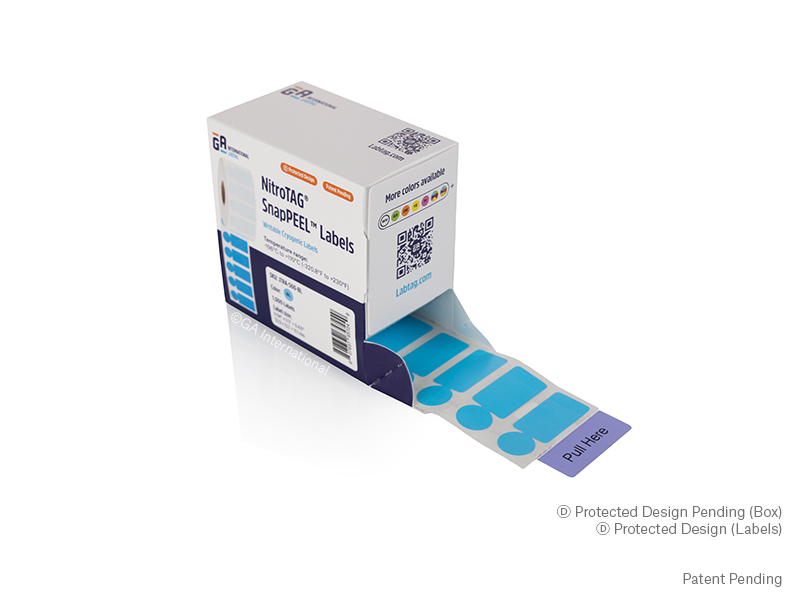

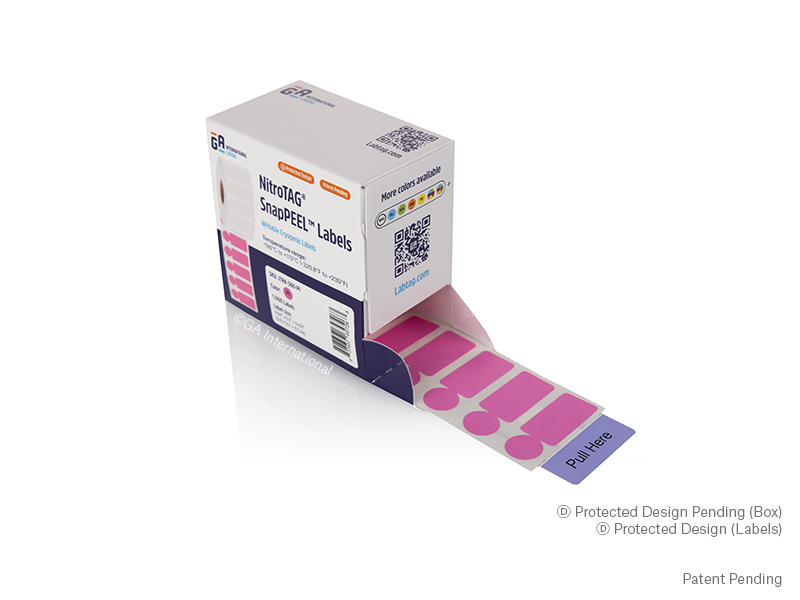

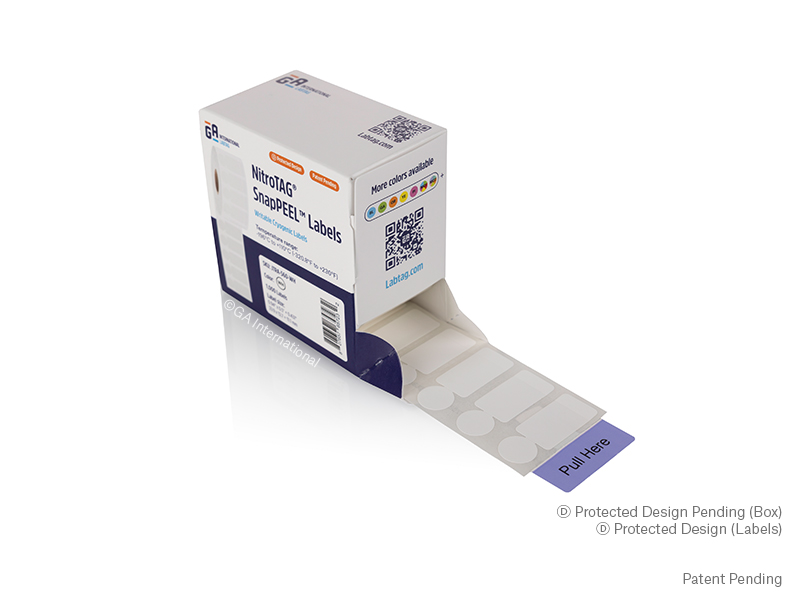

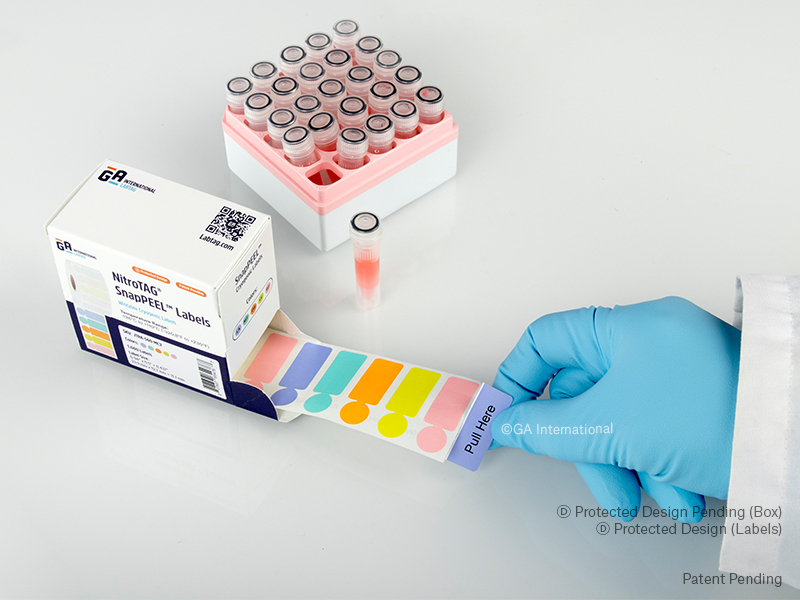

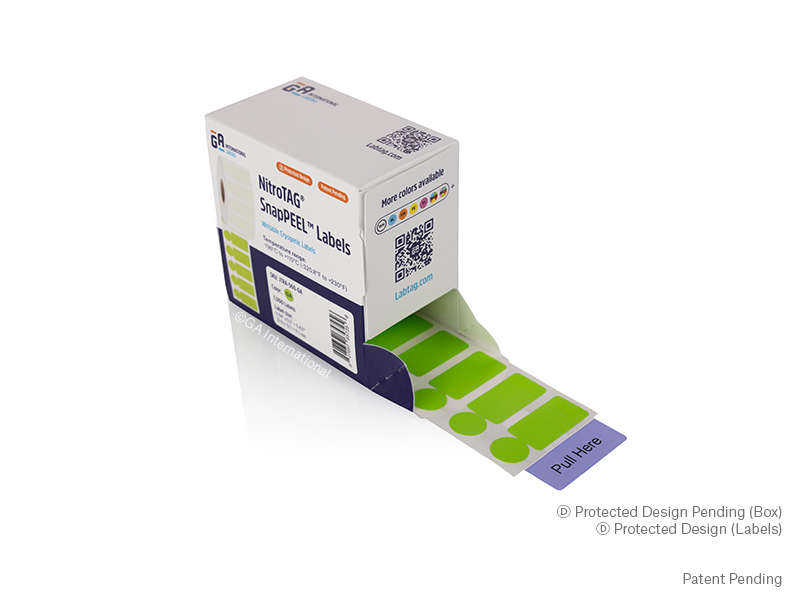

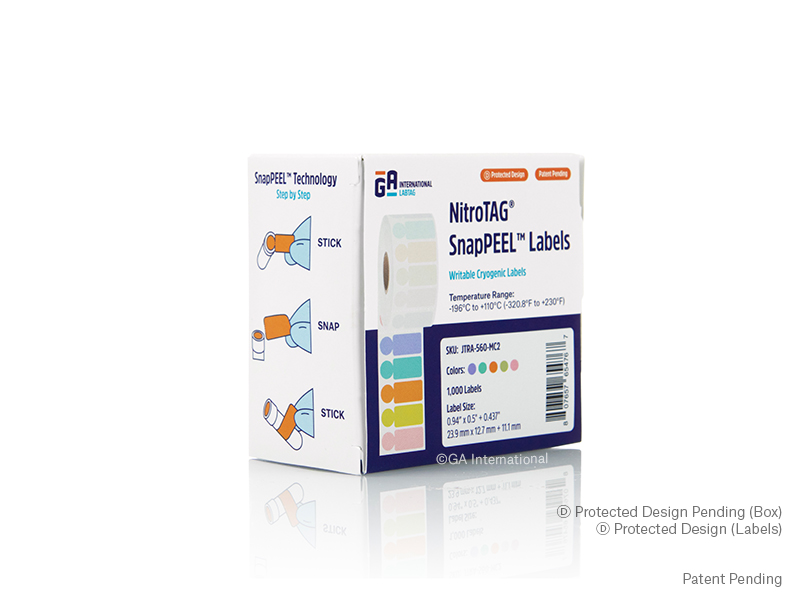

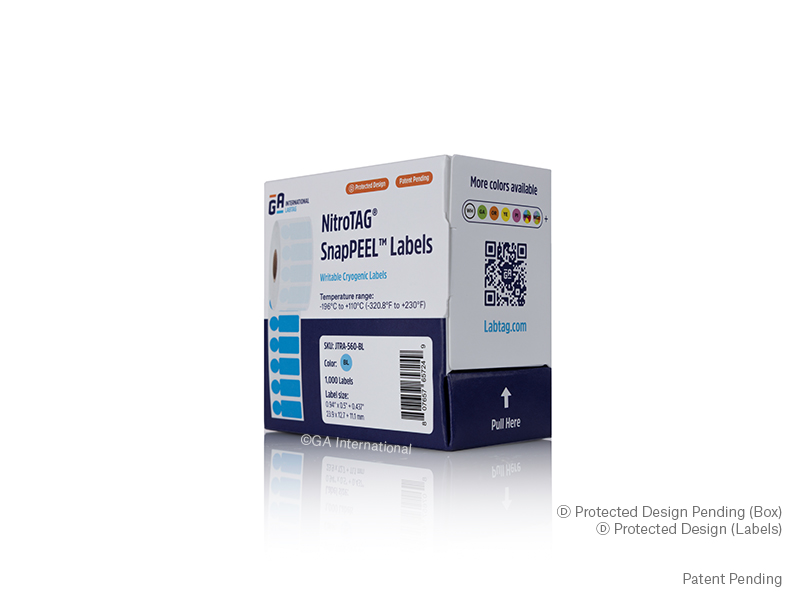

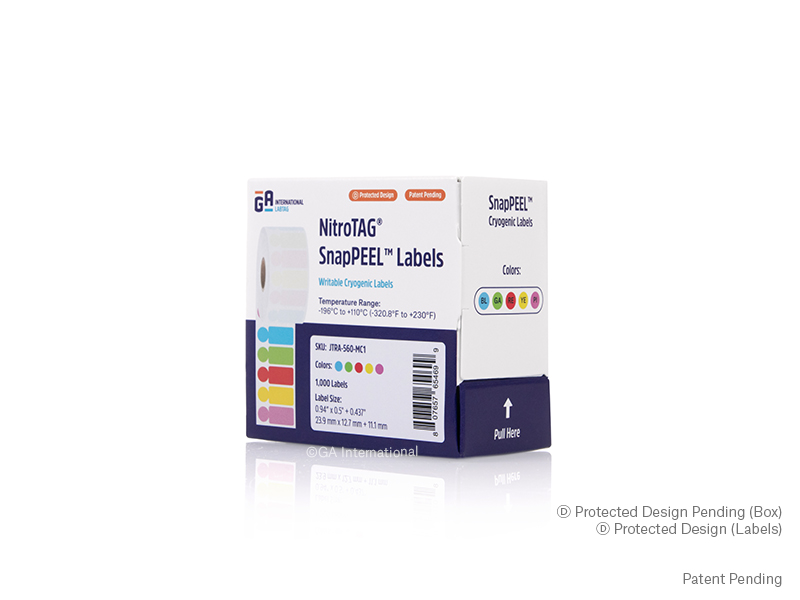

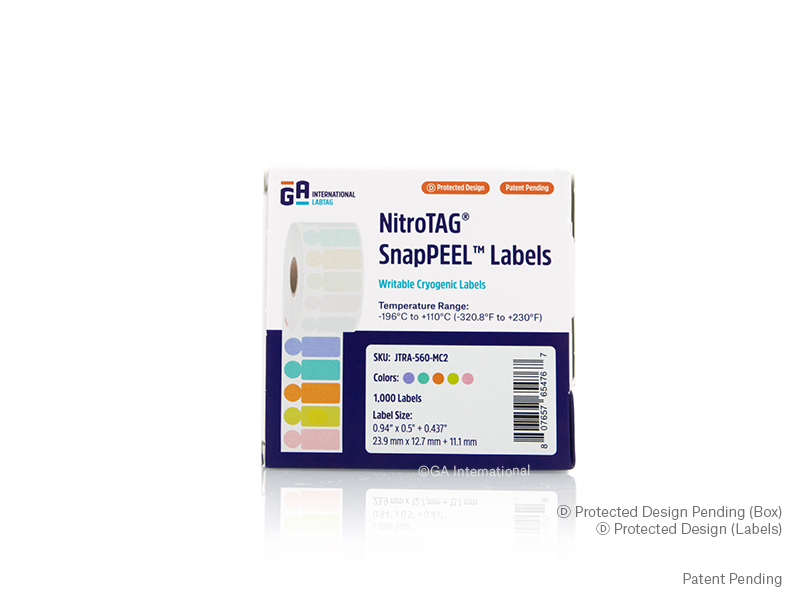

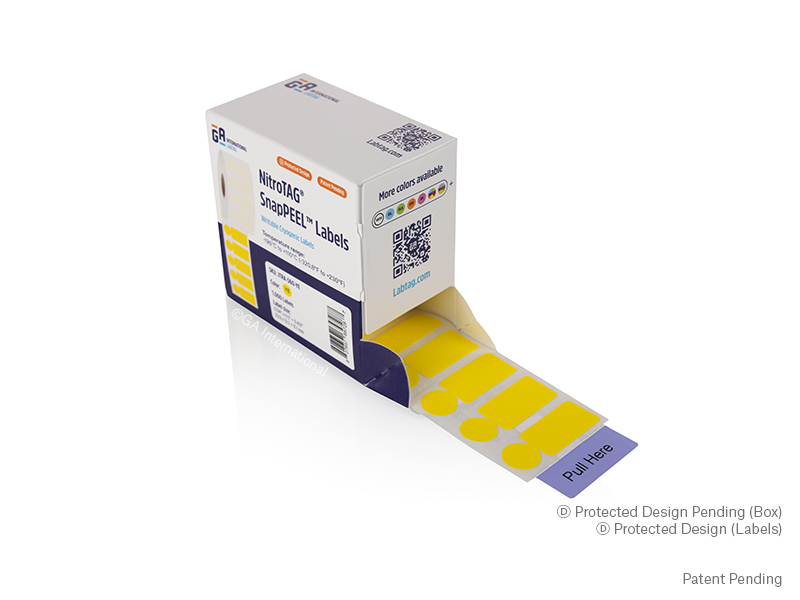

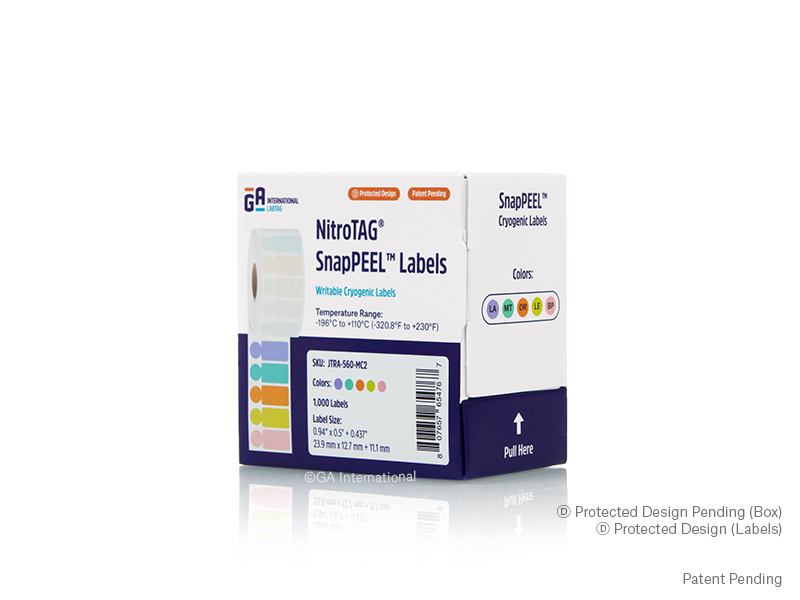

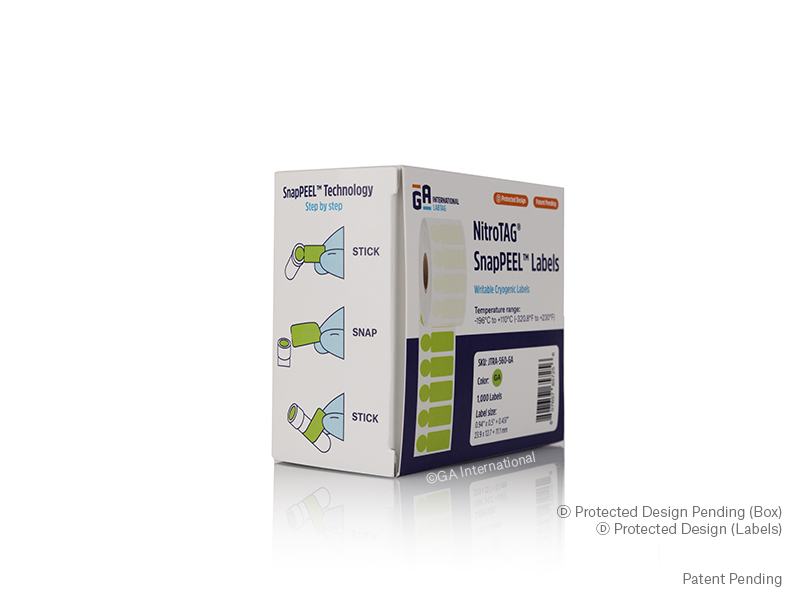

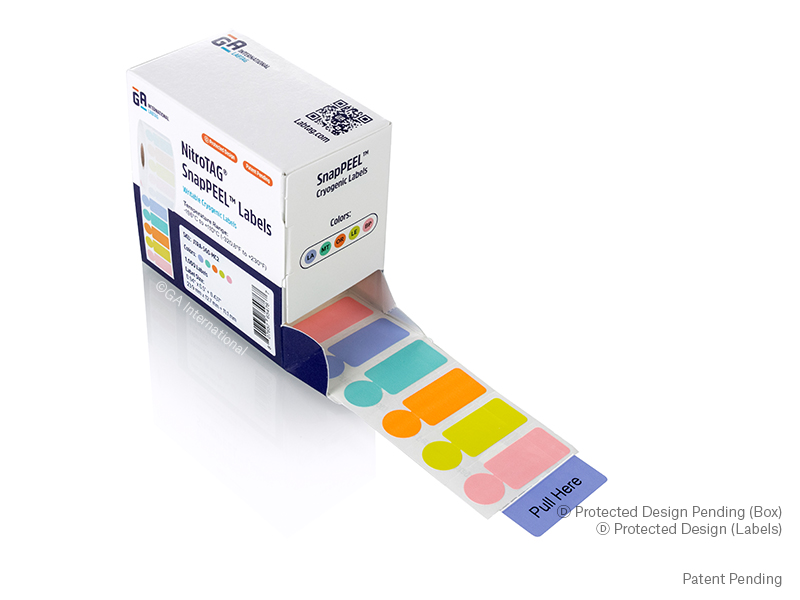

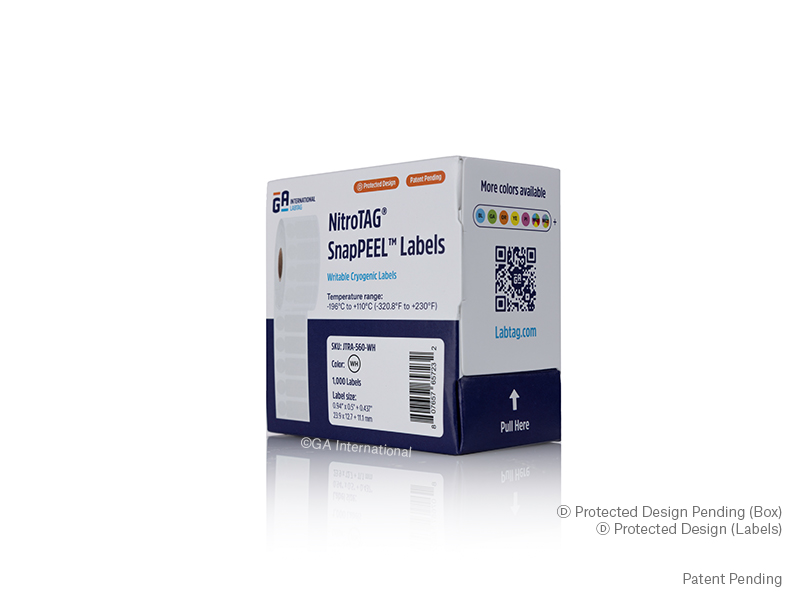

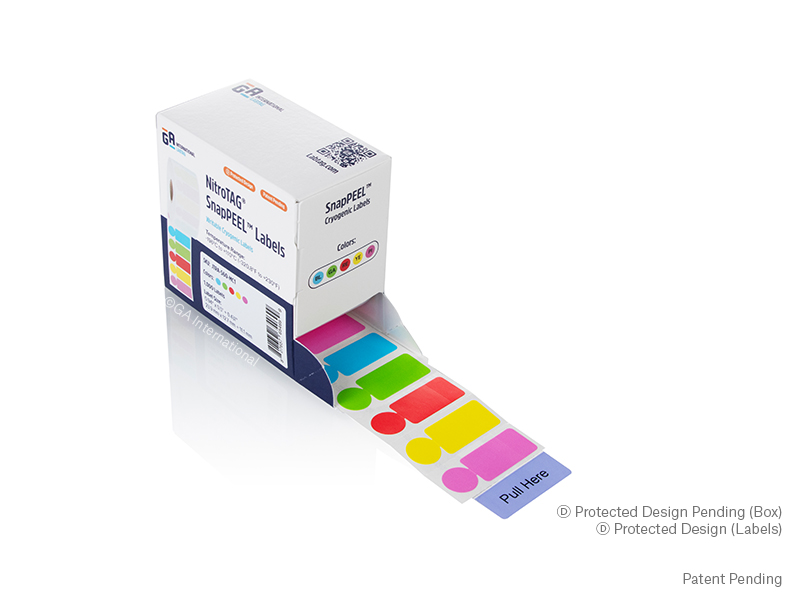

– Portable dispenser box allows for easy manipulation, storage, & peeling
– Increased speed and efficiency when labeling a large batch of cryovials
– Allows for a bird’s-eye view of labeled vials
– Adheres reliably to wet surfaces
Resistance

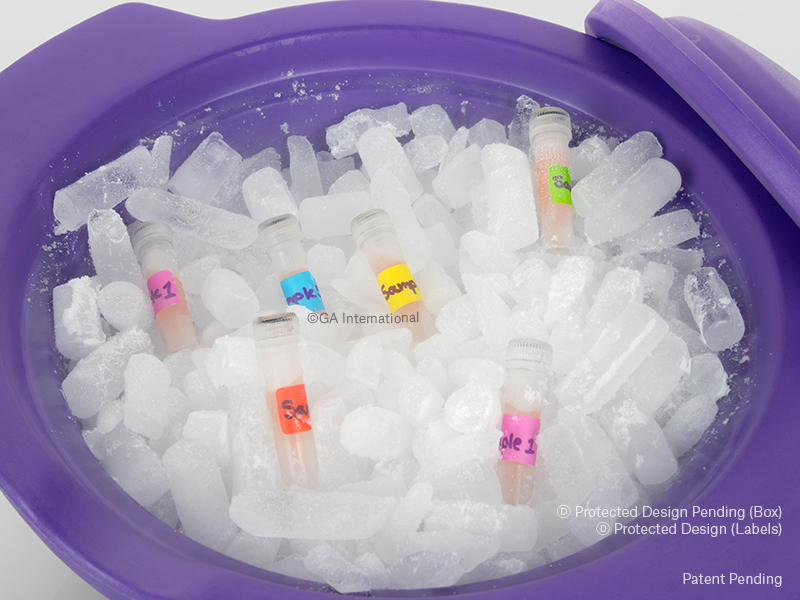

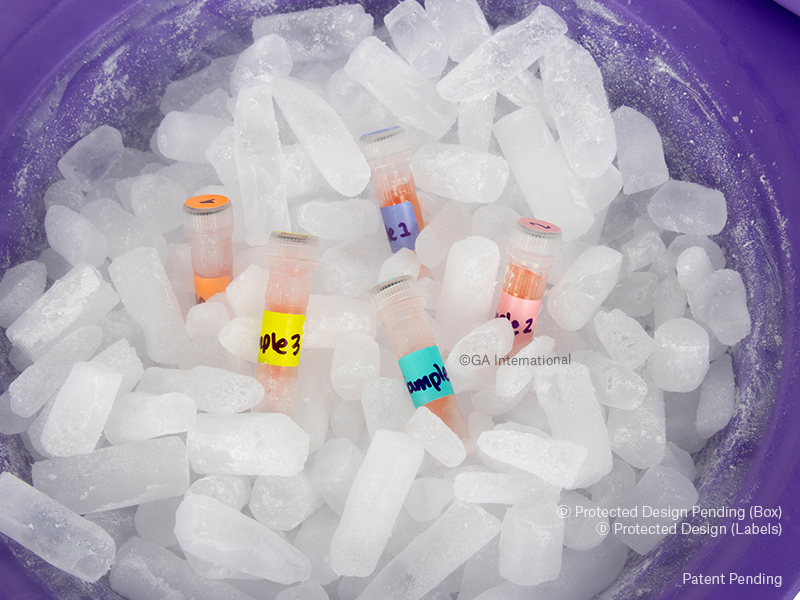

These labels feature a strong permanent adhesive that performs reliably in liquid and vapor-phase nitrogen (-196°C / -321°F), with no cure time, -80°C freezers, and during dry ice transportation. Their waterproof design allows them to adhere to wet surfaces, withstand repeated freeze-thaw cycles, water bath immersion, and tolerate heat up to +110°C. In addition, they resist exposure to alcohols, bleach, detergents, and common sanitizing wipes.

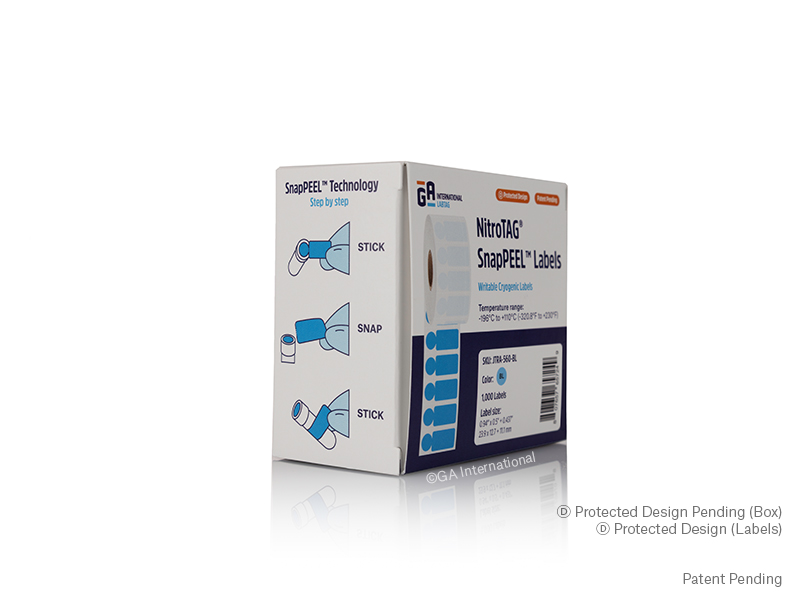

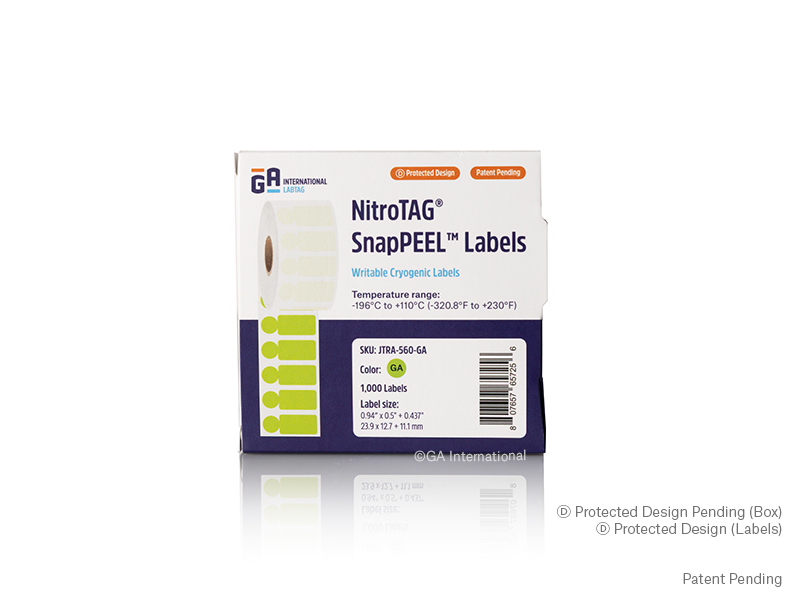

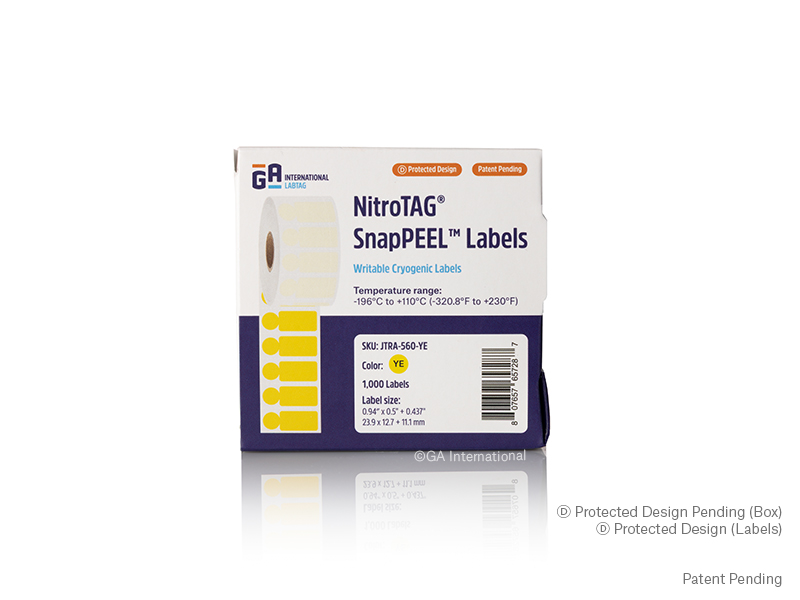

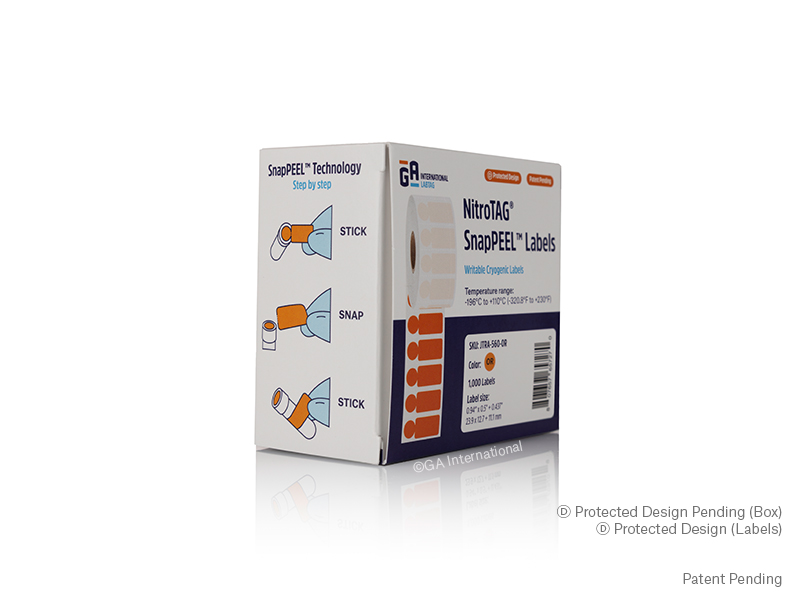

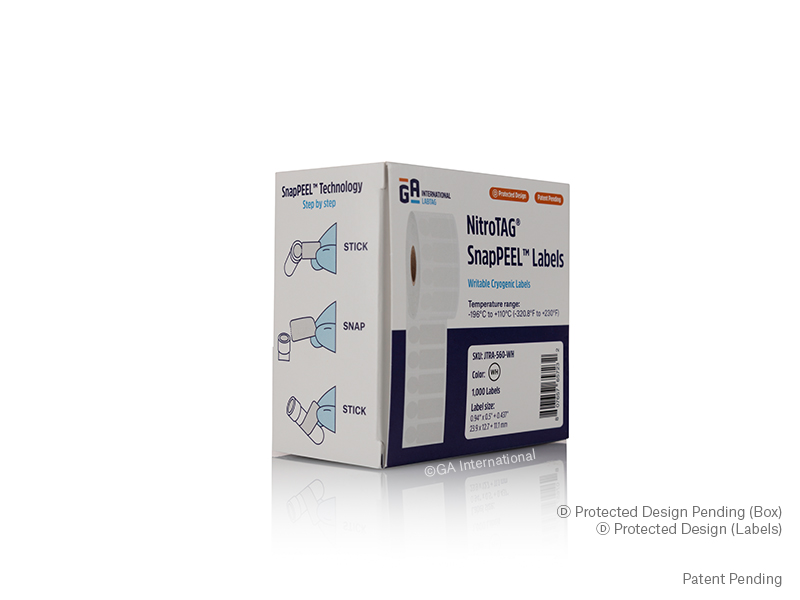

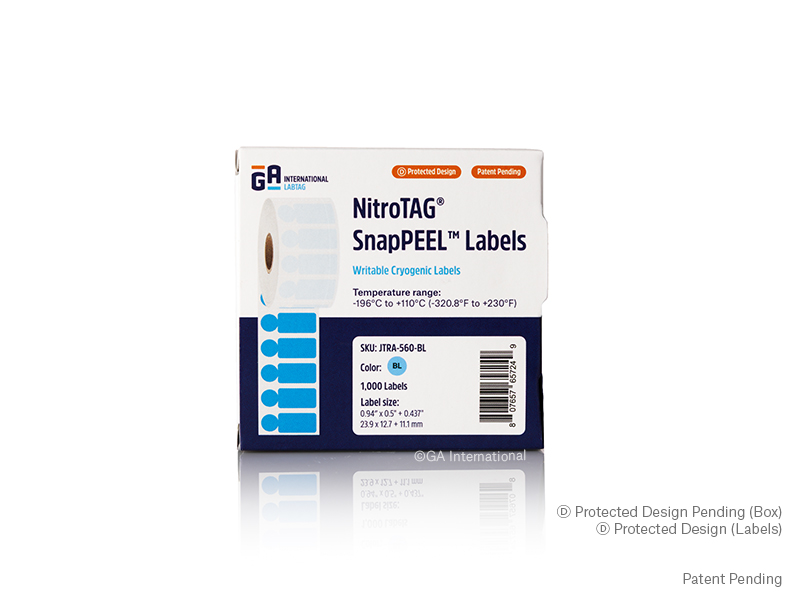

Dispensing and Writing

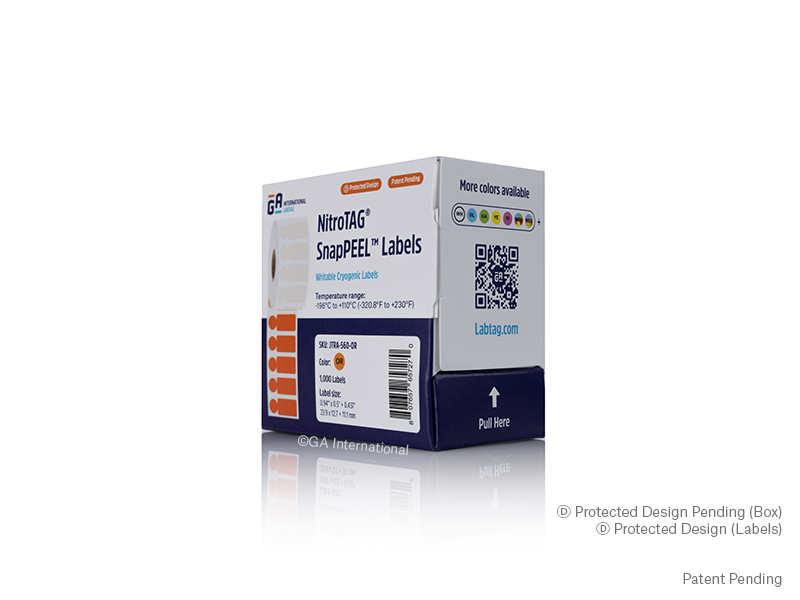

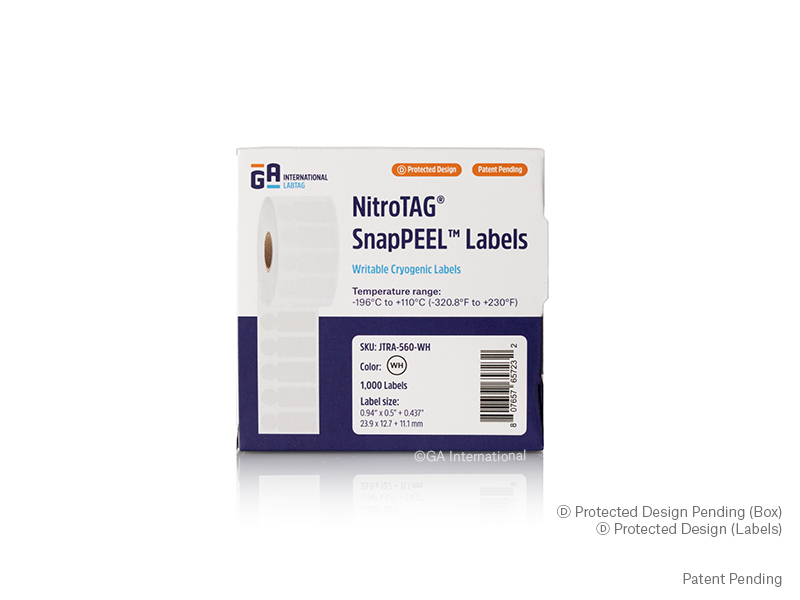

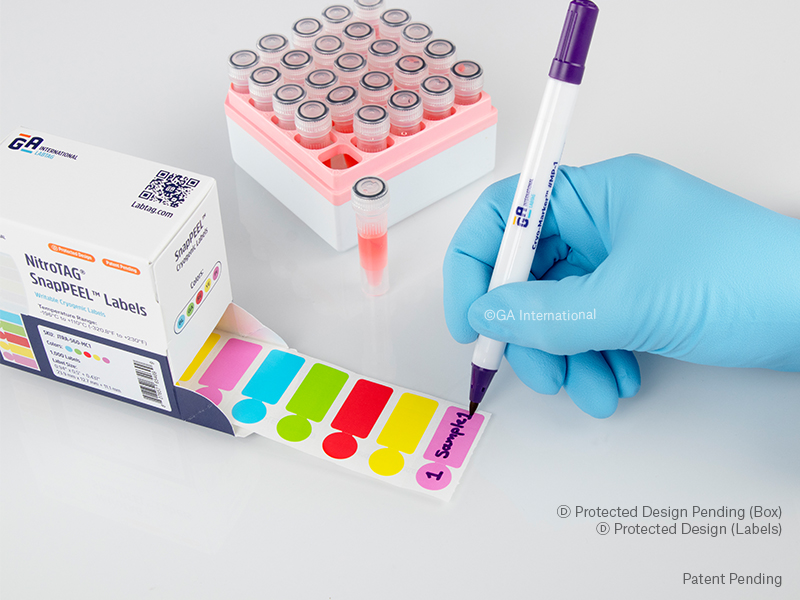

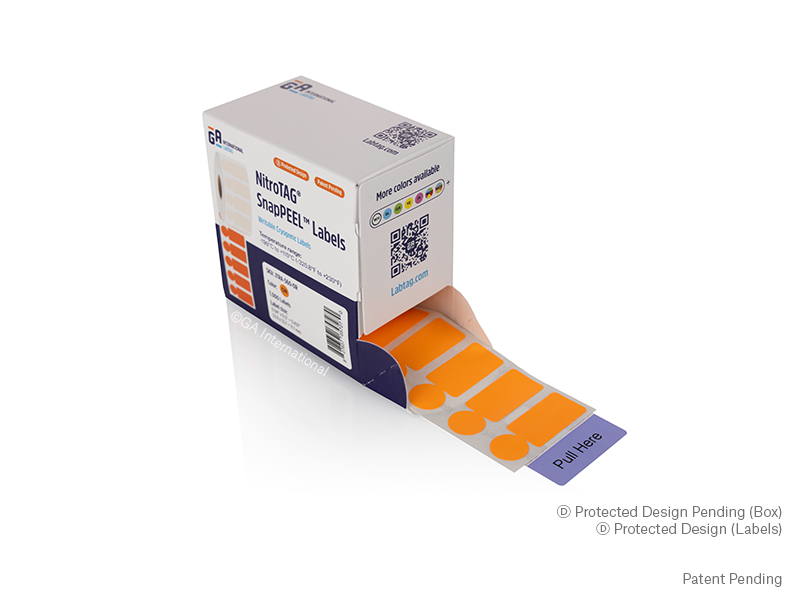

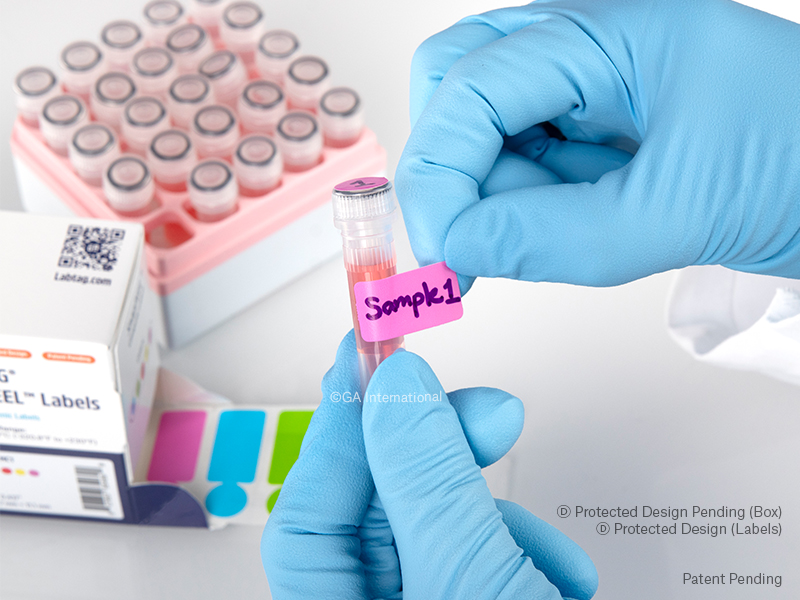

These labels come in a convernient dispenser box that can be stationary at a lab bench or portable in a lab coat pocket. These labels can be writen with pens and markers. We recommend our cryogenic SM-1 marker, which is resistant to water, alcohol, and chemicals.

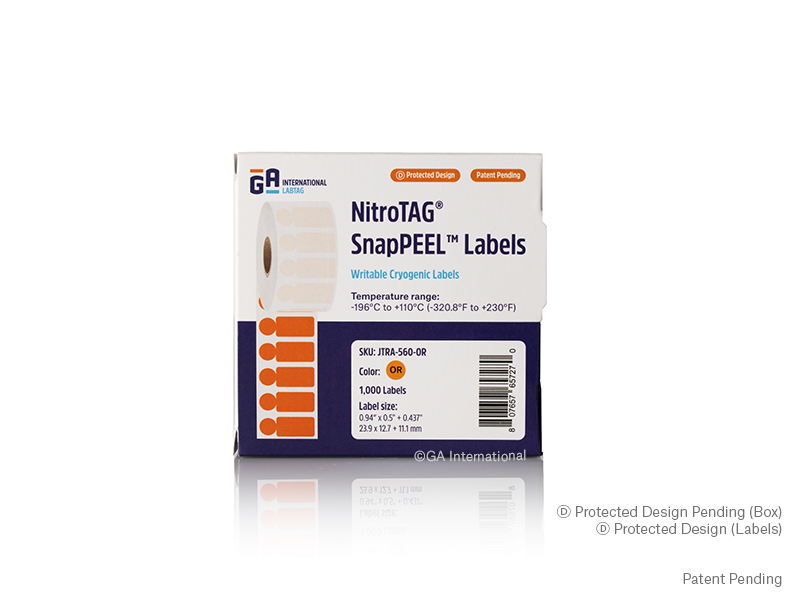

Specifications

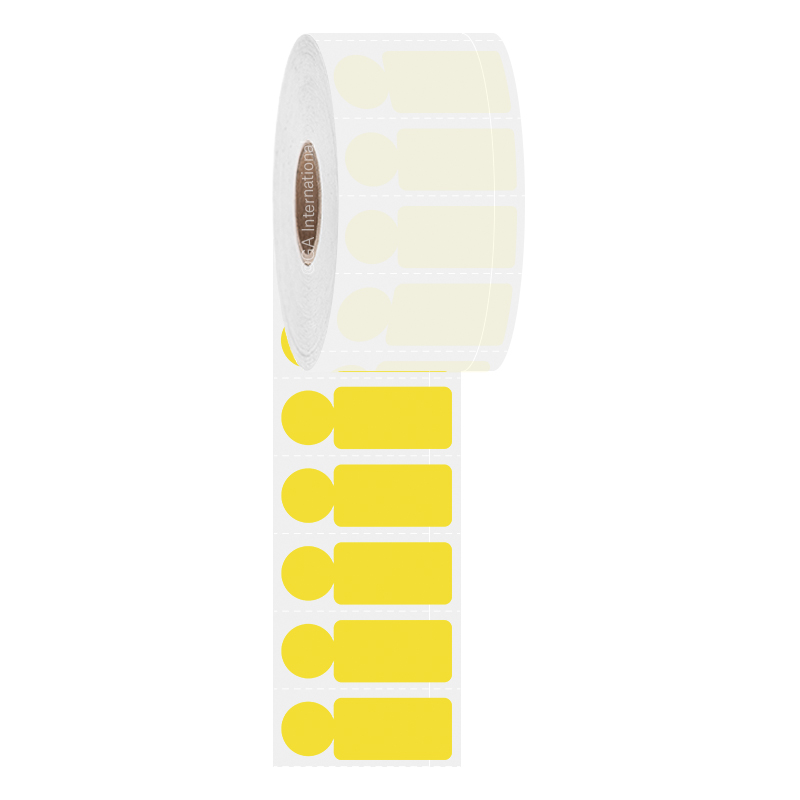

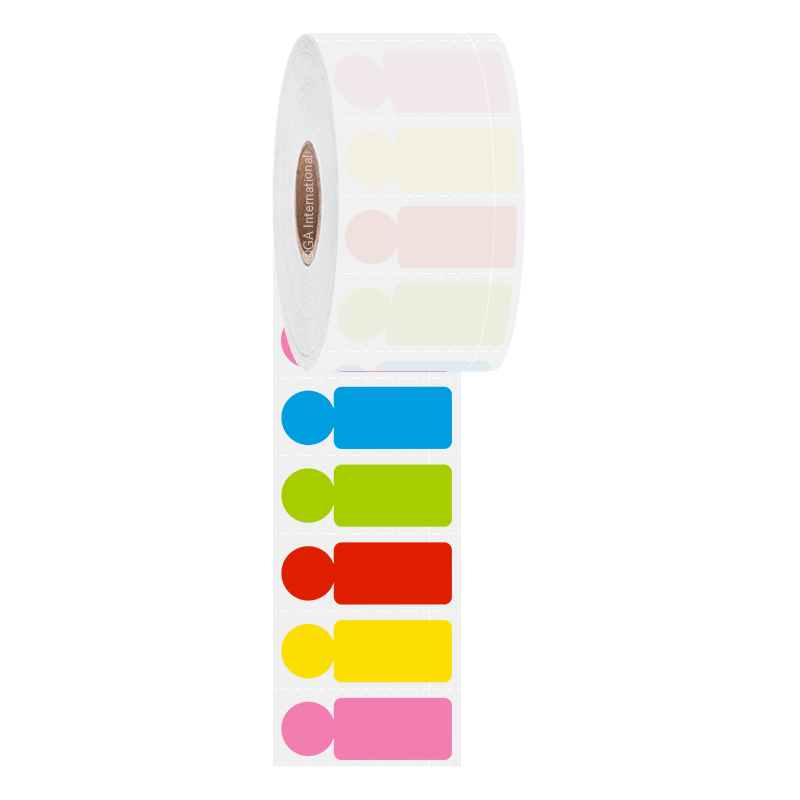

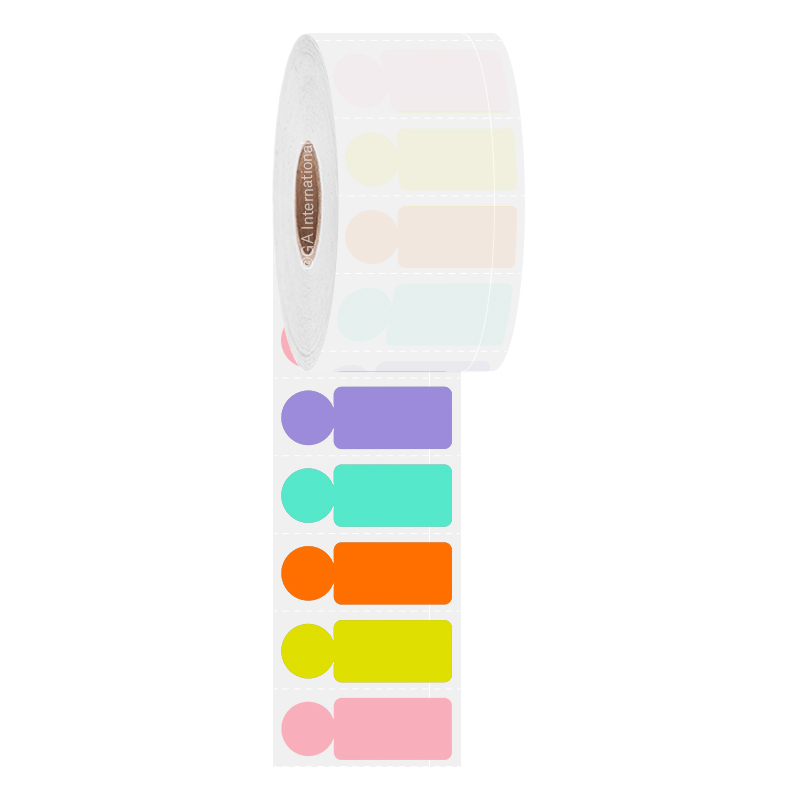

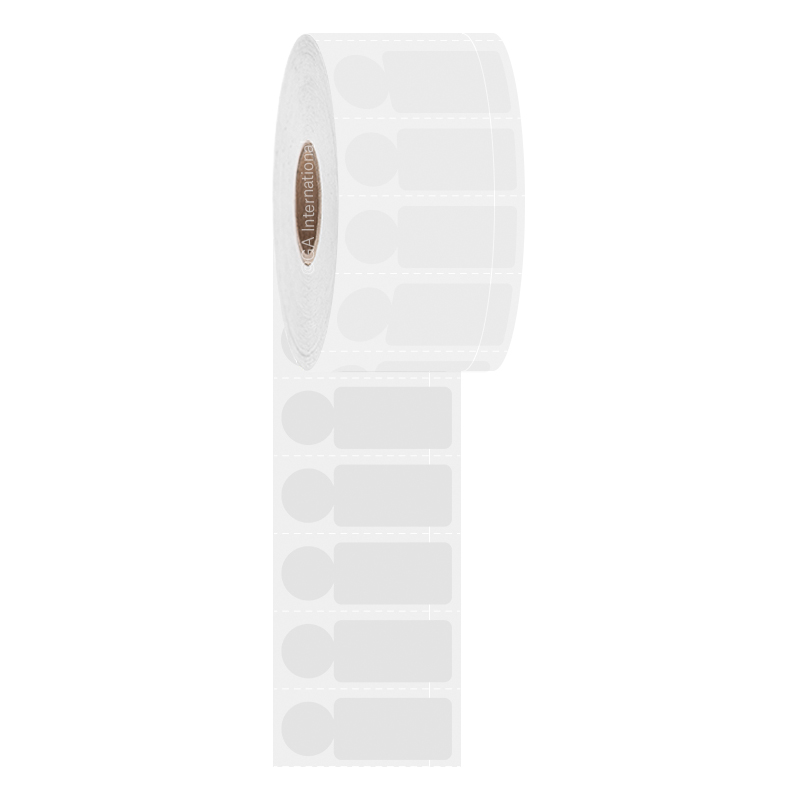

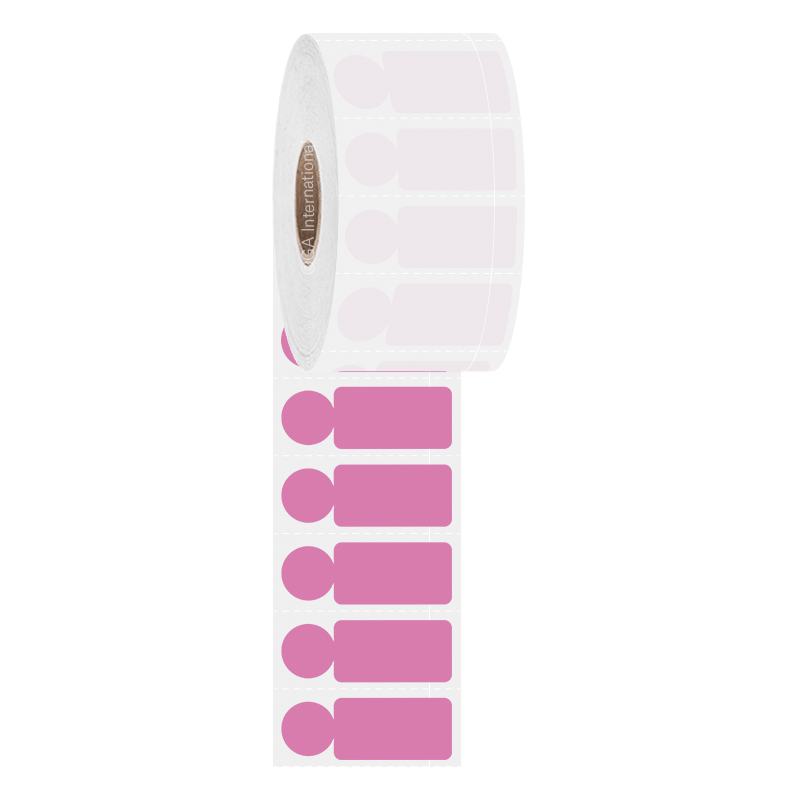

Size: 0.94" x 0.5" + 0.437" circle
(23.9 mm x 12.7 mm + 11.1 mm)
Labels/Roll: 1000
Perforated: Yes
Temperature Range: -196°C to +110°C
(-320.8°F to 230°F)
Adhesive: Permanent
Printing Methods: Writable
Features: SnapPEEL
Resistances: Cryogenic (-196°C), Deep-Freeze (-80°C)
Class: JTRA
Brand: NitroTAG®, SnapPEEL™
Color(s): White, Yellow, Green Apple, Blue, Orange, Pink, Multicolor1, Multicolor2
Reviews
Frequently Asked Questions
Yes, these labels are thermal-transfer printable and require a ribbon to be printed. To achieve the proper printout, NitroTAG labels require an RR-class ribbon of the same width or larger.
No, NitroTAG labels are best applied at room temperature. For labeling already frozen vials and tubes, we recommend our CryoSTUCK® labels, a line of cryogenic labels specially designed for that purpose.
No, NitroTAG labels have a permanent adhesive that is not made for easy removal. For removable cryogenic solutions, see here.
No, NitroTAG labels are meant to be printed using a thermal-transfer printer with a ribbon. Find our selection of thermal-transfer printers here. You can also consult our printer buying guide or contact our technical support team, who will be glad to help you find the right one.
Barcoding or label design software can be used to create templates that conform to the size of your label. You can then insert design elements within the template for easy printing.
Yes, we can provide our NitroTAG cryo labels preprinted with full-color graphics and logos, as well as variable or serialized information from a database, and can be customized Learn more about our custom printing options.
